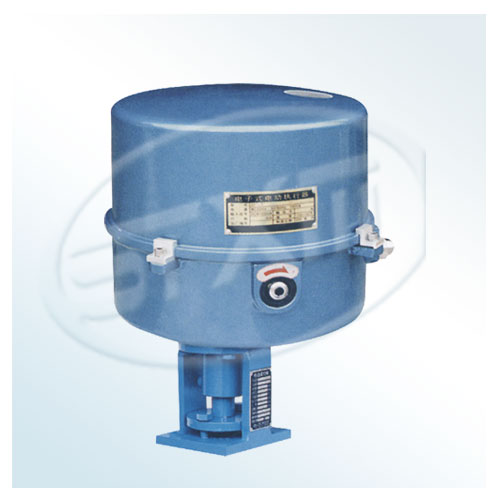

9610R series angle travel all electronic actuators is 220V AC single-phase power supply as a driver to accept DC4 ~ 20mmA or DC1 ~ 5V control signals from the regulator for full electronic actuator operation. Its control unit is designed as box shape and resin poured into modules, AC drive motor with reversible motor, position feedback amount of high-performance conductive plastic potentiometer, is a high-resolution capability, high reliability, high-tech products. When the actuator is used for the valve actuator, with the adjusting operation of the conversion function of the various requirements of the valve itself, and the function of a valve opening signal (DC4 ~ 20mA or 1 ~ 5V), and manual operation.

Control signal: DC4 ~ 20mA, DC1 ~ 5V (external wiring far avoided DC1 ~ 5V)

Mode of operation: switch replacement with positive and negative actions, broken signal selection, input signal selection.

Resolution: <0.4%

Adjustment range: ± 25% zero angle of 20% to 100%

Permissible ambient temperature: -10 ~ +60 ℃

Allow Humidity: 90% (45% -85% flameproof)

Allow vibration: 1.5g or less (g is the gravitational acceleration)
