● Overview

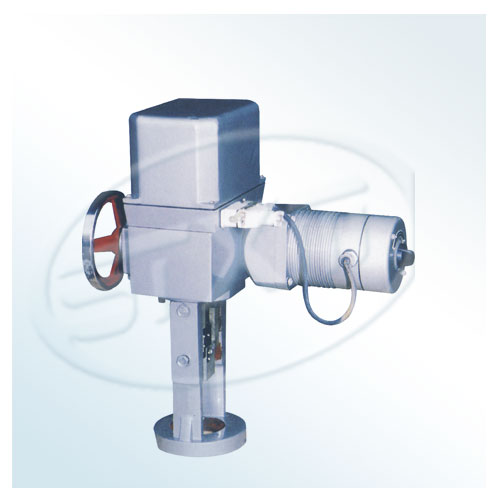

DKZ type straight stroke electric actuator with DDZ-Ⅲ type instrument supporting the use and assembly can also be equipped with instrumentation and TA instrument . It is powered with 220V power supply , to accept a unified standard signal 4-20mA.DC, this input signal into a corresponding linear displacement axis , automatically operated valve or other agencies , such as the completion of the terminal automatically adjust task, or with now with electric operation manual remote . Widely used in power plants, steel mills, chemical industry , light industry and other industrial sectors conditioning system .
The instrument has a continuously adjustable , manual remote control , local hand- operated three control methods .
Use straight trip DKZ type electric actuator automatically adjusts the system to be equipped with ZPE-3101 servo amplifier , in order to achieve automatic control system manual ← → automatic bumpless the DFD-1000 electric actuator .
● The main technical parameters
Input signal : 0 ~ 10mA.DC, 4 ~ 20mA.DC
Input resistance : 200Ω (Ⅱ type ), 250Ω (Ⅲ type )
Input channels: three isolated channels
Basic error : ± 2.5%
Hysteresis : ± 1.5%
Dead zone : ≤ 3% (1 ~ 3% adjustable )
Pure delay : ≤ 1s
Power supply voltage : 220V.AC, 50Hz
Environmental conditions : ( 1 ) Ambient temperature : Actuator ≤ -10 ~ +55 ℃
( 2 ) Relative humidity: ≤ 95% actuator
